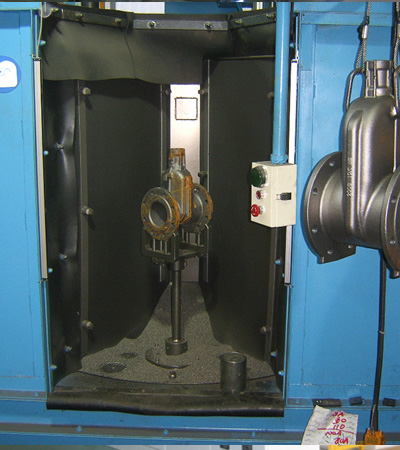

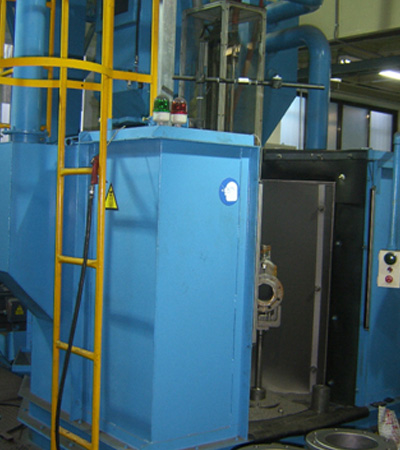

Valve Shot M/C
- It is SHOT MACHINE for VALVE.
- The outer diameter SHOT shall be IMPELLER and the inner diameter SHOT shall be AIR UNIT.
- LASER informs the sensor of the valve when the substrate is seated.
- BLAST CABINET INSPECTION When the door is opened, an automatic stop and alarm device is installed to prevent safety accidents.
- Using INDEX TABLE, you can do a lot of work at a given time.
Specifications
Spec / PART NAME |
IMPELLER |
INDEX TABLE |
BUCKET ELEVATOR |
SMALL TABLE |
AIR BLAST UNIT |
DUST COLLECTOR |
Standard |
Φ360×62W |
Φ1500 |
610B×210W×5300H |
Φ250 |
Φ582×1400L |
100M3/Min |
MOTOR Volume |
15HP |
2.2KW |
360KG |
1/4HP |
- |
10HP |
Quantity |
2SET |
1SET |
1SET |
6SET |
1SET |
1SET |
