Trolley Hanger
- It is a facility used for continuous desizing and quenching of various parts of forging and forging.
- Automated unmanned automation and production efficiency can be increased when painting equipment is installed after SHOT BLASTING.

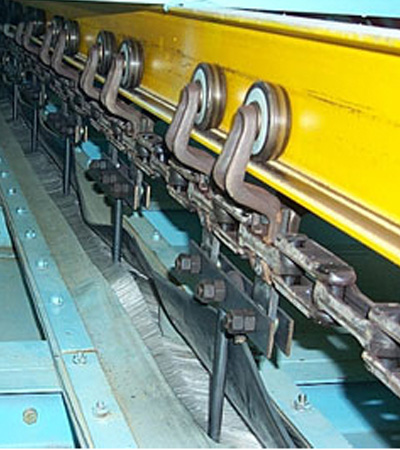

- Continuous operation is possible by transferring the product using TROLLEY CONVEYOR.
- BLAST CABINET INSPECTION When the door is opened, an automatic stop and alarm device is installed to prevent safety accidents.
- It is superior in productivity compared to other models.
Specifications
| Division/MODEL NO |
MST-32004 |
MST-32006 |
MST-32009 |
MST-32012 |
MST-32016 |
MST-43004 |
| MAX.DIMENSION WORKPIECE |
Φ400×1200L |
Φ800×1200L |
Φ1000×1500L |
Φ1500×4000L |
Φ2000×5000L |
Φ8000×12000L |
| WORK WEIGHT |
360KG |
360KG |
360KG |
360KG |
360KG |
360KG |
| WORK SPEED |
0.5-6M/MIN |
0.5-6M/MIN |
0.5-6M/MIN |
0.5-6M/MIN |
0.5-6M/MIN |
0.5-6M/MIN |
| IMPELLER UNIT |
Ø360 x 15HP x
4SET |
Ø360 x 15HP x
6SET |
Ø360 x 15HP x
9SET |
Ø360 x 15HP x 12SET |
Ø360 x 15HP x
16SET |
Ø490 x 30HP x
4SET |
| DUST COLLECTOR |
200M3/MIN |
300M3/MIN |
400M3/MIN |
700M3/MIN |
800M3/MIN |
1500M3/MIN |
