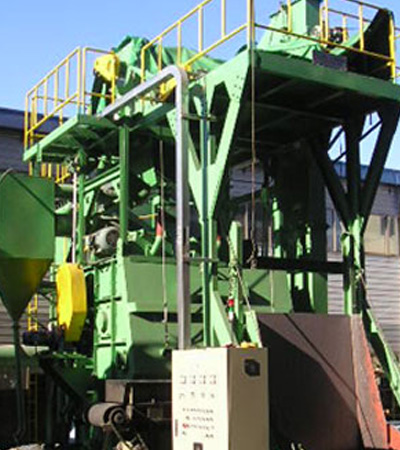

Caterpillar Type

  • APRON TYPE SHOT BLAST This is a SHOT BLAST M / C that solves the disadvantages of M / C.
  • It is a facility to remove large size and heavy weight of high temperature main forging products.
  • By developing CATERPILLAR, CHAIN, LINE, it is possible to quickly process high temperature products and large workpieces by securing the shortcomings of existing ENDLESS BELT TYPE.

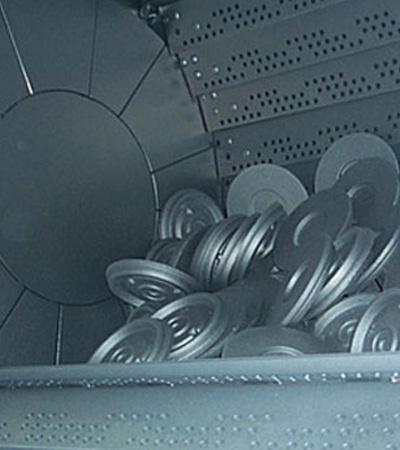

  • SLAT CONVEYOR & OSCILLATING CONVEYOR is installed at the time of exiting, and it is excellent in cleaning effect by agitation of the processed product.
  • It is possible to carry out the field of products.

Specifications

Division/MODEL NO MSCA-500KG-750KG MSCA-1000 MSCA-1500 MSCA-2000
1 Processing Capacity 500KG-700KG BATCH 1000KG BATCH 1500KG BATCH 2000KG BATCH
Charging device AUTO AUTO AUTO AUTO
IMPELLER UNIT Ø490 x 30HP x 1SET Ø490 x 30HP x 2SET Ø490 x 40HP x 2SET Ø490 x 40HP x 2SET
DUST COLLECTOR 75M3/MIN 100M3/MIN 150M3/MIN 200M3/MIN
DUST COLLECTOR METHOD SHAKING OR AIR PULSE TYPE
