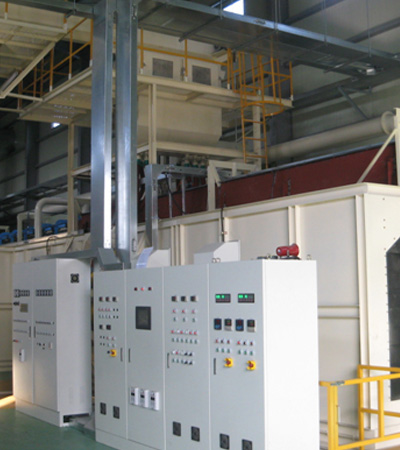

Tunnel Type
- It is a facility used to consecutively desorb and treat BOOM of various heavy equipment.
- After SHOT BLASTING, the unmanned automation and production efficiency can be improved when installing painting equipment.
- HOIST and CONVEYOR can be used to transport the product.
- BLAST CABINET INSPECTION When the door is opened, an automatic stop and alarm device is installed to prevent safety accidents.
- It is superior in productivity compared to other models.
Specifications
| Division/MODEL NO |
MSTU-400 |
MSTU-800 |
MSTU-1000 |
MSTU-1500 |
MSTU-2000 |
MSTU-8000 |
| MAX.DIMENSION WORKPIECE |
Φ400×1200 |
Φ800×1200L |
Φ1000×1500L |
Φ1500×4000L |
Φ2000×5000L |
Φ8000×12000L |
| WORK WEIGHT |
360KG |
360KG |
360KG |
360KG |
360KG |
360KG |
| WORK SPEED |
0.5-6M/MIN |
0.5-6M/MIN |
0.5-6M/MIN |
0.5-6M/MIN |
0.5-6M/MIN |
0.5-6M/MIN |
| IMPELLER UNIT |
Ø360 x 15HP x 4SET |
Ø360 x 15HP x 6SET |
Ø360 x 15HP x 9SET |
Ø360 x 15HP x 12SET |
Ø360 x 15HP x 16SET |
Ø490 x 30HP x 8SET |
| DUST COLLECTOR |
200M3/MIN |
300M3/MIN |
400M3/MIN |
700M3/MIN |
800M3/MIN |
1500M3/MIN |
