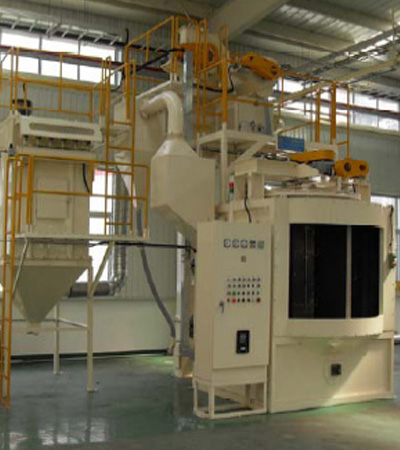

Rotary Hanger
- It is a mechanical device that effectively removes SCALE and BURR for die casting, precision casting.
- It is very effective for products that should not cause scratches on the surface of the object during the shot operation.
- Continuous operation can maximize production.

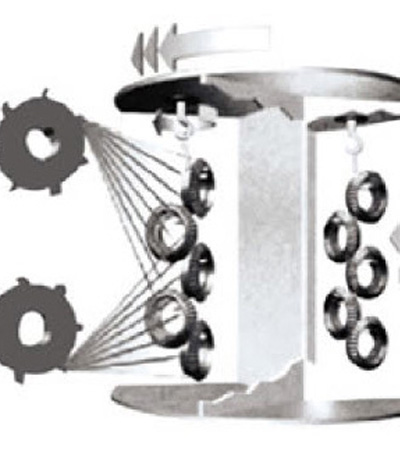

- There is no scattering of the shot ball because 5 ~ 6 chambers are formed in one CABINET.
Specifications
| ODEL NO |
MSH-12 |
MSH-15 |
MSH-18 |
MSH-20 |
MSH-25 |
| CABINET SIZE |
1500×1650L |
1700×1950L |
2200×2500L |
2400×3200L |
2900×3500L |
| MAX. DIMENSION
WORKPIECE |
Φ1000x1200H |
Φ1500x1500H |
Φ1800x2000H |
Φ2000x2500H |
Φ2500x3000H |
| MAX. WEIGHT OF
WORKPIECE |
800KG |
1500KG |
2000KG |
3000KG |
5000KG |
| IMPELLER UNIT |
Ø360 x 10HP x
2SET |
Ø360 x 15HP x
2SET |
Ø360 x 15HP x
3SET |
Ø360 x 15HP x 4SET |
Ø360 x 30HP x
4SET |
| DUST COLLECTOR |
35M3/MIN |
50M3/MIN |
75M3/MIN |
150M3/MIN |
250M3/MIN |
