Apron Type

Apron Type

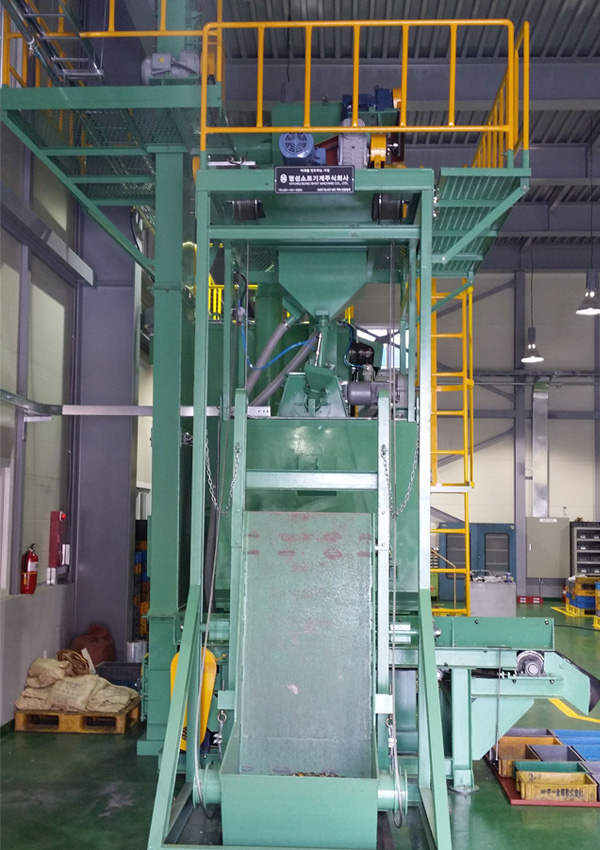

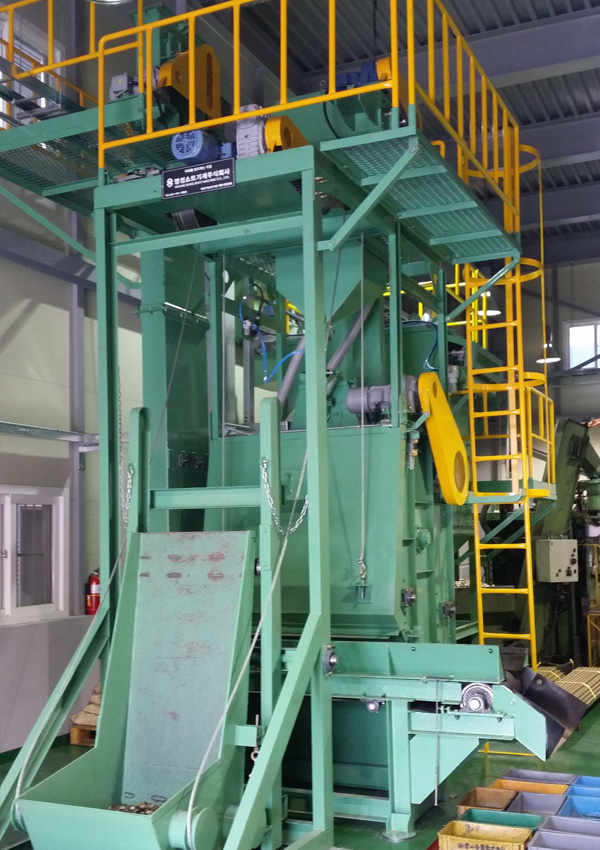

  • It is SHOT BLAST M / C, which is used for removing and recommending small and light products of casting and forging products.
  • When installing LOADING SYSTEM and CONVEYOR SYSTEM at the time of disconnection, it is possible to reduce the number of workers and shorten the process, and it can be configured as an automated line.
  • LOADING SYSTEM has WIRE TYPE and HOIST CHAIN TYPE. It is optional according to customer's request.
  • The product can be used for field or herniation.

Specifications

Division/MODEL NO MSA-3 MSA-5 MSA-10 MSA-12
1 Processing Capacity 300KG BATCH 500KG BATCH 1000KG BATCH 1200KG BATCH
DRUM WHEEL SIZE Φ700×850L Φ900×1000L Φ1100×1250L Φ1300×1500L
LOADING EQUIPMENT MANUAL AUTO MANUAL AUTO MANUAL AUTO MANUAL AUTO
IMPELLER UNIT Ø360 x 10HP x 1SET Ø360 x 15HP x 1SET Ø360 x 15HP x 2SET Ø360 x 20HP x 2SET
DUST COLLECTOR 30M3/MIN 50M3/MIN
 75M3/MIN
 100M3/MIN
DUST COLLECTOR METHOD SHAKING OR AIR PULSE TYPE
