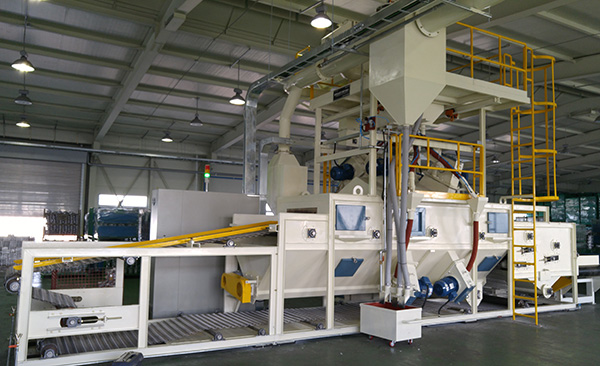

Wire Mesh Type
- It effectively removes SCALE and BURR for automobile cylinder block, head and precision casting.
- It is a very effective mechanism for removing residual concrete of aluminum for construction aluminum EURO FORM.
- Production is much better than other models.
- The ejected conveyor reverses the object and automatically removes the accumulated short ball on the upper side.
- It is very easy to replace the WIRE MESH.
Specifications
Division/MODEL NO |
MSWM-600 |
MSWM-700 |
MSWM-800 |
WIDE OF WORKPICE |
600W |
700W |
800W |
MESH WIDTH |
800W |
900W |
1000W |
IMPELLER UNIT |
Φ360×10HP×6SET |
Φ360×10HP×8SET |
Φ360×15HP×8SET |
MESH MATERIAL |
SPRING WIRE |
SPRING WIRE |
SPRING WIRE |
DUST COLLECTOR |
75M3/MIN |
100M3/MIN |
150M3/MIN |
