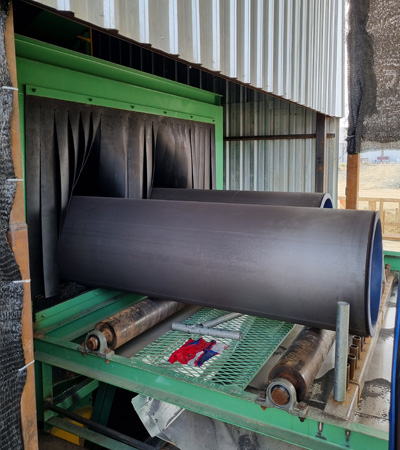

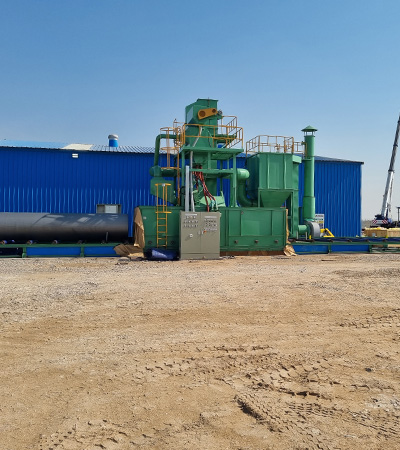

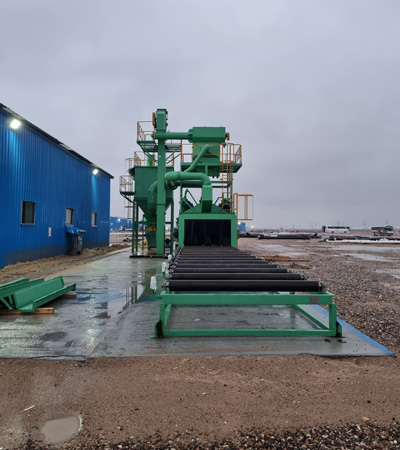

Pipe Type Shot MC
- It is a facility that requests foreign materials and SCALE from outside to inside of PIPE from small size to large size.
- By installing LOADING / UNLOADING device, the work process is shortened and it can be installed like painting line to make automated unattended line.
- Due to the standard flow of PIPE at the inlet and outlet, the size can be changed at any time.
- LINER (CR steel) was attached to the casting to maximize the abrasion resistance.
- Depending on the size of the work piece, the mouth and the exit door can be replaced.
Specifications
| Division/MODEL NO |
MSP-0215 |
MSP-2050 |
MSP-6012 |
MSP-1524 |
| CABINET SIZE |
600W×4500L×800H |
1200W×5000L×1250H |
1600W×5500L×2100H |
2900W×5500L×3000H |
| RANGE OF
LINE SPEED |
5~10M/Min |
2~5M/Min |
2~5M/Min |
0.5~2M/Min |
| IMPELLER UNIT |
Ø360 x 10HP x 2-4SET |
Ø420 x 20HP x 2-4SET |
Ø490 x 20HP x 2-4SET |
Ø490 x 40HP x 2-4SET |
| IMPELLER UNIT |
Ø360 x 10HP x 2SET |
Ø360 x 15HP x 3SET |
Ø490 x 30HP x 4SET |
Ø490 x 40HP x 4SET |
| DUST COLLECTOR |
50M3/MIN |
75M3/MIN |
150M3/MIN |
200M3/MIN |
