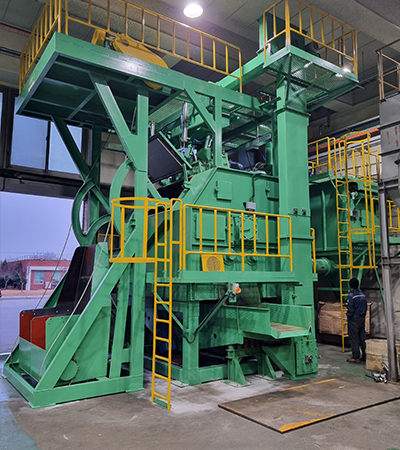

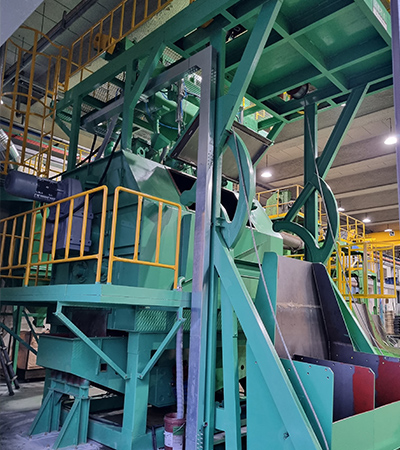

Apron Drum Type

Apron Drum Type

  • It is a SHOT BLAST M / C which compensates the disadvantages of APRON TYPE and CATERPILLER TYPE.
  • There is a Hi-Mn DRUM inside the CABINET. After putting the material into this DRUM, it performs the SHOT work while reciprocating left and right.
  • It has superior SHOT quality than APRON TYPE and SHOT time is short, which is suitable for mass production line.
  • SLAT CONVEYOR & OSCILLATING CONVEYOR is installed at the time of exiting, and it is excellent in cleaning effect by agitation of the processed product.

Specifications

Division/MODEL NO MSAD-10 MSAD-15
1 processing capacity/MAX 1,000Kg 1,500Kg
DRUM SIZE Φ1500×1500L Φ1500×2406L
LOADING EQUIPMENT MANUAL, AUTO MANUAL, AUTO
IMPELLER UNIT Φ420×15HP×2SET Φ490×30HP×2SET
DUST COLLECTOR 100 ㎥/Min 150㎥/Min
