환경설비

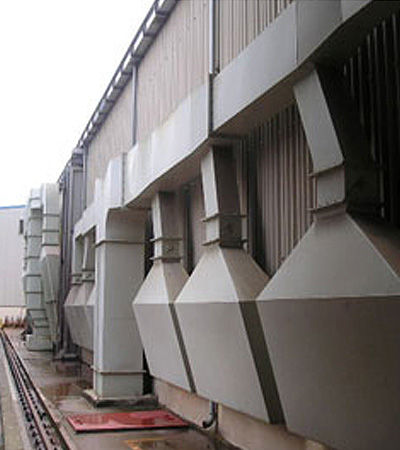

Environmental facility

  • It is a facility to create a pleasant working environment by collecting dust and pollutants generated during various operations in one place.

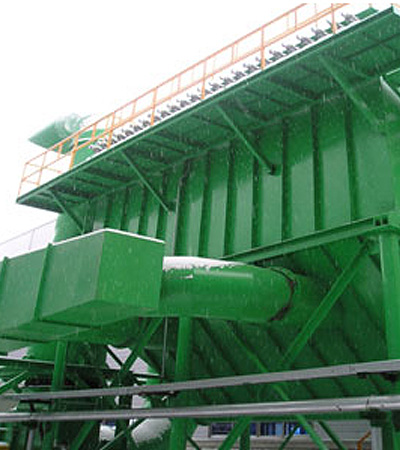

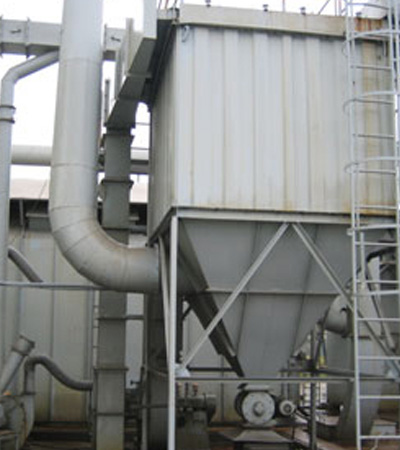

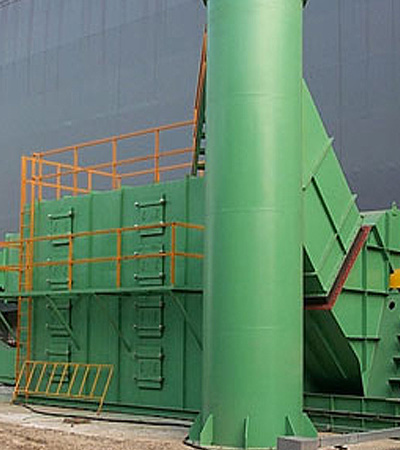

  • DECK and LADDER can be installed up to various checkpoints and measuring points, and can be safely repaired and measured.

Specifications

Division/MODEL NO MSPD-50 MSPD-75 MSPD-100 MSPD-200 MSPD-300 MSPD-600
BODY SIZE

1205W×1205B ×3385H

 1160W×1780B ×4395H 1700W×1800B ×4575H 1550W×3650B ×6315H 1980W×4370B ×6315H 2470W×6530B ×7015H
BLOWER  CAPACITY 50M3/MIN 75M3/MIN 100M3/MIN 200M3/MIN 300M3/MIN 600M3/MIN
STATIC  PRESSURE 200mmAq 250mmAq 250mmAq 250mmAq 280mmAq 280mmAq
FILTER BAG SIZE Φ127×1500L Φ127×2100L Φ127×2100L Φ127×2400L Φ127×2400L Φ127×2400L
FILTERING SPEED 1.76M/MIN 1.68M/MIN 1.68M/MIN 1.66M/MIN 1.59M/MIN 1.76M/MIN
Q'TY OF FILTER BAG 48PCS 54PCS 72PCS 128PCS 200PCS 360PCS
POWER OF  BLOWER MOTOR 5HP 7.5HP 10HP 20HP 30HP 60HP
