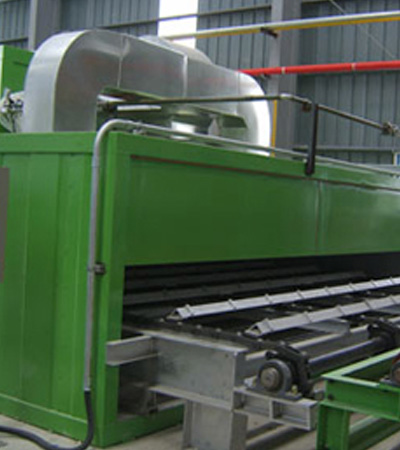

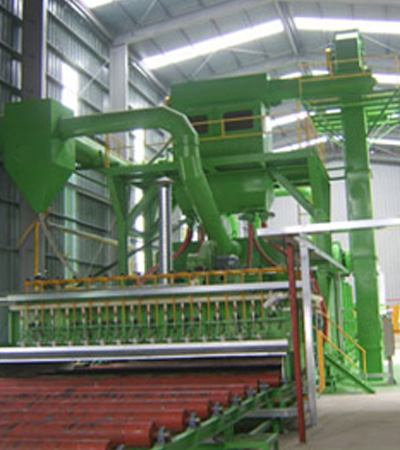

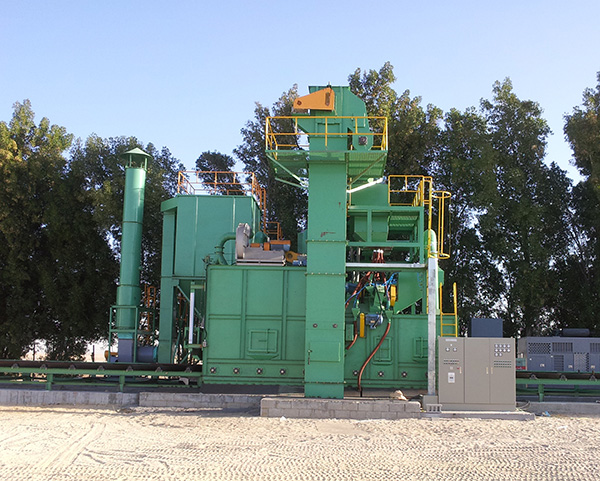

Horizontal & Section Steel

It is a facility to perform SCALING of various steel materials (PLATE, H (I) -BEAM, CHANNEL, ANGLE, etc.).
STEEL PLATE type and BEAM type can be shared with one SHOT M / C.
In addition, PRE-HEATER, PAINTING-BOOTH, DRY-OVEN, etc. can be installed and installed to form an automation line.
Continuous operation is possible by installing LOADING and UNLOADING devices.
Inner lining with HI-Mn PLATE reduces replacement cost and improves machine operation rate.
BLOW-OFF was installed to eliminate the ABRASIVE loaded on the workpiece to communicate the projection efficiency and cleanliness effect.

Division/MODEL NO	MSHS-1500	MSHS-2400	MSHS-3000	MSHS-4500
CABINET SIZE	2400W×6500L×3600H	3700W×7000L×3600H	4100W×7700L×4550H	5300W×8000L×4900H
MAX.DIMENSION STEEL PLATE	1500W×100H	2400W×100H	3000W×100H	4500W×100H
MAX.DIMENSION H-BEAM	300~900H	300~900H	300~900H	300~900H
RANGE OF LINE SPEED	1.0~3.0 M/Min	0.5~3.0 M/Min	0.5~3.0 M/Min	0.5~5.0 M/Min
IMPELLER UNIT	Ø360 x 20HP x 6SET	Ø490 x 40HP x 6SET	Ø490 x 40HP x 6SET	Ø638 x 65HP x 8SET
DUST COLLECTOR	300M3/MIN	400M3/MIN	400M3/MIN	800M3/MIN
