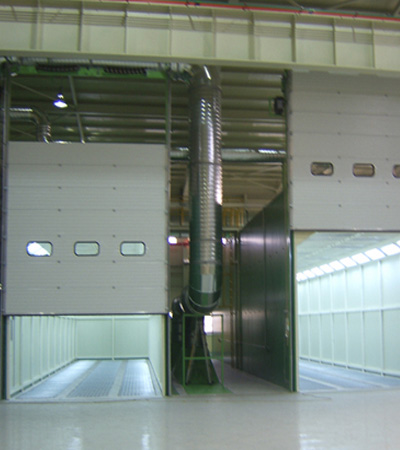

Painting, Baking Equipment

This facility is a painting and drying facility after the SHOT BLAST operation.
In order to improve the work environment of the worker during the painting work, the air conditioner was installed.

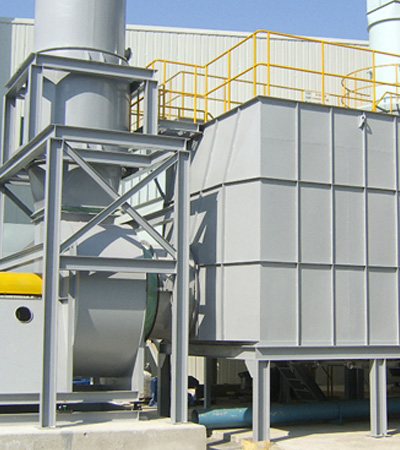

An adsorption tower was installed during painting to create a pleasant working environment.
MAIN DOOR was combined with electric and manual for safety of workers.
In order to facilitate the painting work, the indoor illuminance was set to 800 Lux.

Spec / PART NAME	PAINT BOOTH	BAKING BOOTH
SIZE	4000×4000×20000	4000×4000×20000
Wind	0.5m/sec	0.5m/sec
Heating temperature	LNG BUNER Flame TYPE	LNG BUNER Flame TYPE
BOOTH Temperature	Summer 25 ° C or lower (system air conditioning )	82~104℃
Brightness	800LUX	800LUX
Noise	75db Below	75db Below
DOOR System	Electric, manual combination	Electric, manual combination
Dust collection method	Carbon adsorption method	Carbon adsorption method
