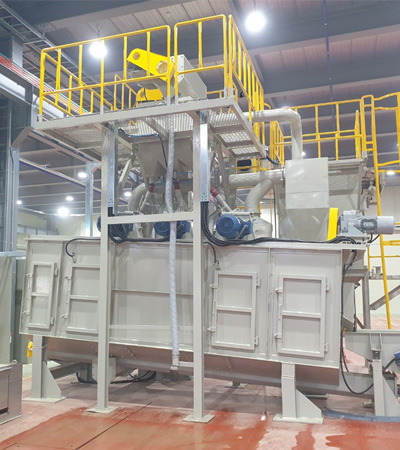

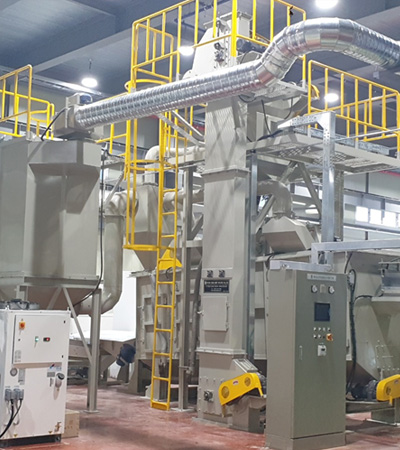

DURM TYPE SHOT BLAST M/C

DURM TYPE SHOT BLAST M/C

  • It is used in connection with existing automation lines in the main, large-scale casting, forging, and mechanical parts factories that require high production capacity.
  • It removes strong foreign substances and scales attached to the surface of various products.

Specifications

구분/MODEL NO MSDU-500 MSDU-800 MSDU-1000
MAX.DIMENSION WORKPIECE

Φ500×3050L

 Φ800×4200L Φ1000×5500L
처리량(CYLIE TIME) 4~10TON/HR 4~10TON/HR 6~12TON/HR
WORK SPEED 0.2-1M/MIN 0.2-1M/MIN 0.2-1M/MIN
IMPELLER UNIT Ø360 x 15HP x 3SET Ø360 x 15HP x 4SET Ø360 x 15HP x 6SET
DUST COLLECTOR 100M3/MIN 200M3/MIN 300M3/MIN
